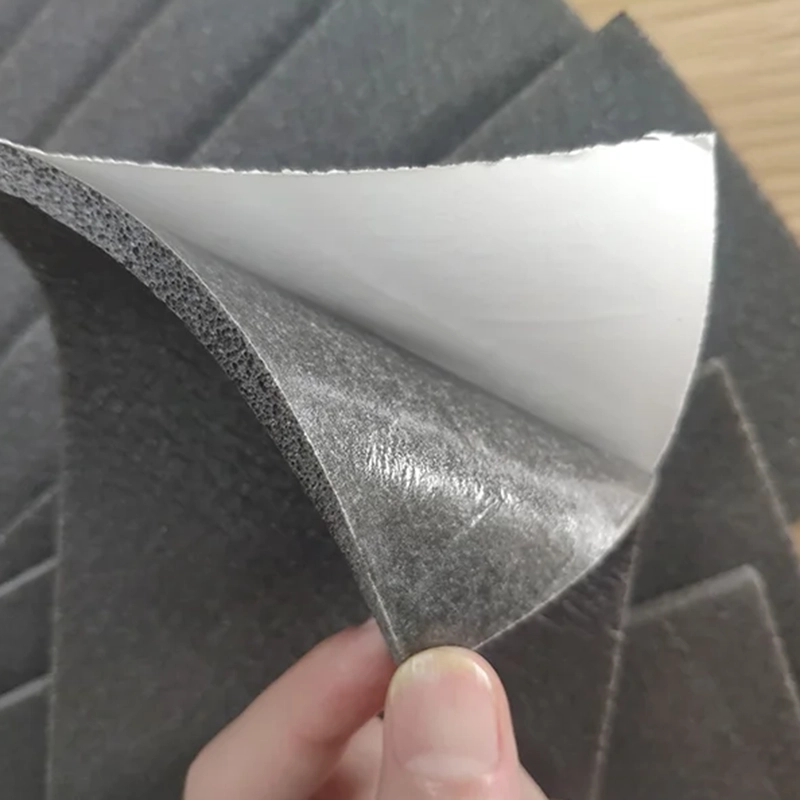

Espuma adhesiva XPE FOAM

Our Solution

Espuma adhesiva XPE FOAM

Material：polyolefin foam，xpe foam, ixpe foam, polyethylene foam with aluminum foil
Thickness: 5mm~20mm
Color: black, pink,
Width: 500mm~1600mm
Length: 30m/roll, 50m/roll
Application: Roof insulation, pipe insulation, wall insulation, sound insulation, oil pipe insulation, HVAC insulation

Physical Property Table (TDS):

Product Crosslinked polyethylene foam
Times 5B 10B 15B 20B 25B 30B
PHYSICAL PROPERTIES TEST METHOD METRIC UNITS /
Density - Nominal ISO 845：2006 GB/T 6343-2009 kg/m³ 200±30 100±10 66±8 50±6 40±5 33±5
Shore Hardness Shore C LX-C ° ≥65 55±5 45±5 35±5 30±5 25±5
Size limit Espesor Internal mm 3～6 3～8 3～8 3～10 3～12 3～15
Anchura ≤1200 ≤1600 ≤1800 ≤1800 ≤1800 ≤1800
Tensile Strength TD ISO 1798：2008 GB/T 6344-2008 MPa ≥1300 ≥700 ≥400 ≥300 ≥250 ≥200
MD ≥1500 ≥800 ≥500 ≥400 ≥300 ≥200
Elongation at Break TD ISO 1798：2008 GB/T 6344-2008 % ≥140 ≥130 ≥120 ≥110 ≥100 ≥90
MD ≥140 ≥130 ≥120 ≥110 ≥100 ≥90
Tear strength TD QB/T 1130-91 KN/m ≥8 ≥5 ≥3 ≥2 ≥1.5 ≥1.2
MD ≥8 ≥5 ≥3 ≥2 ≥1.5 ≥1.2
Dimension Stability (80℃,24h) TD ISO 2796：1986 GB/T 8811-2008 % ≤±1.0 ≤±1.0 ≤±1.5 ≤±2.0 ≤±3.0 ≤±3.0
MD ≤±1.5 ≤±2.0 ≤±3.0 ≤±3.5 ≤±4.0 ≤±5.0
Water Absorption under 50% RH condition ISO 62：2008 GB/T 1034-2008 % ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3
Thermal Conductivity ISO 8302：1991 GB/T 10294-2008 W/（m.k） ≤0.045 ≤0.045 ≤0.045 ≤0.04 ≤0.04 ≤0.04

Application Scenarios and Performance Requirements:

A. Electronic Products (e.g., cushion pads for mobile phones, computers, etc.)

Performance Indicators: Shock absorption, temperature resistance, insulation

B. Automotive Industry (e.g., car emblems, body trim strips, window seals)

Performance Indicators: Weather resistance, compression resistance, chemical resistance

C. Medical Applications (e.g., medical tapes, shock-absorbing pads for medical devices)

Performance Indicators: Durability, environmental non-toxicity
