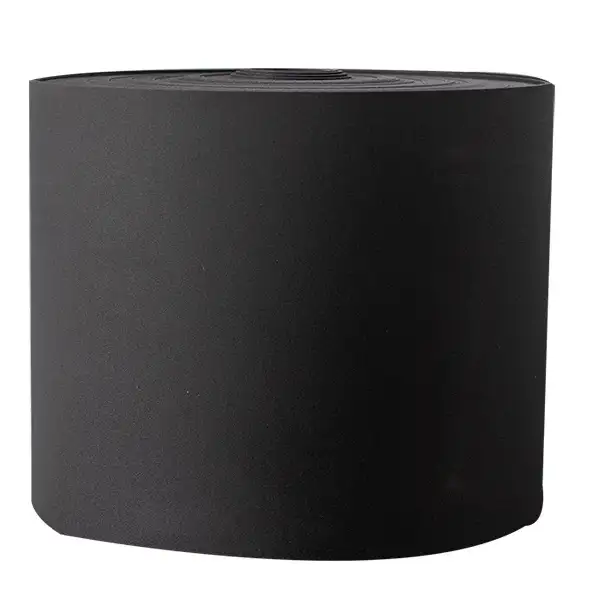

XPE FOAM MSX20

Our Solution

XPE FOAM MSX20

XPE FOAM is closed cell and cross linked with high mechnical properties.
Flame retardant and fireproof
Anti-vibration and moisture-proof
Wear-resistant and durable

Physical Property Table (TDS):

Product Crosslinked polyethylene foam
Times 20B
PHYSICAL PROPERTIES TEST METHOD METRIC UNITS
Density - Nominal ISO 845：2006 GB/T 6343-2009 kg/m³ 50±6
Shore Hardness Shore C LX-C ° 35±5
Size limit Thickness Internal mm 3～10
Width ≤1800
Tensile Strength TD ISO 1798：2008 GB/T 6344-2008 MPa ≥300
MD ≥400
Elongation at Break TD ISO 1798：2008 GB/T 6344-2008 % ≥110
MD ≥110
Tear strength TD QB/T 1130-91 KN/m ≥2
MD ≥2
Dimension Stability (80℃,24h) TD ISO 2796：1986 GB/T 8811-2008 % ≤±2.0
MD ≤±3.5
Water Absorption under 50% RH condition ISO 62：2008 GB/T 1034-2008 % ≤0.3
Thermal Conductivity ISO 8302：1991 GB/T 10294-2008 W/（m.k） ≤0.04

Application Scenarios and Performance Requirements:

A. New Energy Vehicle Battery Pack Encapsulation (e.g., power battery module isolation layers, cell expansion buffer strips)

Performance Indicators: Thermal conductivity, flame retardancy, resistance to electrolyte corrosion

B. Packaging Liners for Precision Instruments (e.g., chip transportation buffer layers, antistatic trays)

Performance Indicators: Compression resistance, antistatic property, temperature resistance

C. High-Density Building Soundproofing Scenarios (e.g., shock-absorbing layers for precision laboratories)

Performance Indicators: Sound insulation, compression resistance, temperature resistance

D. Medical Applications (e.g., degradable surgical isolation membranes)

Performance Indicators: Antimicrobial property, degradability
