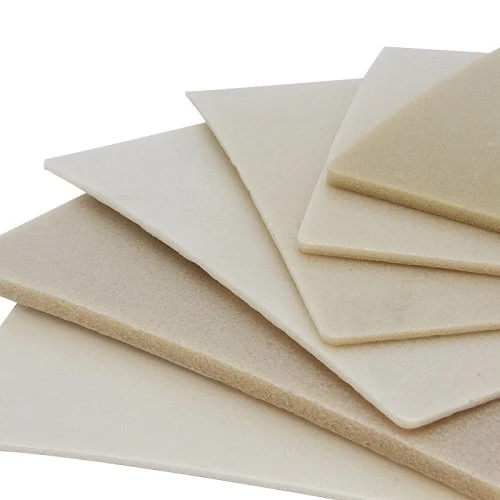

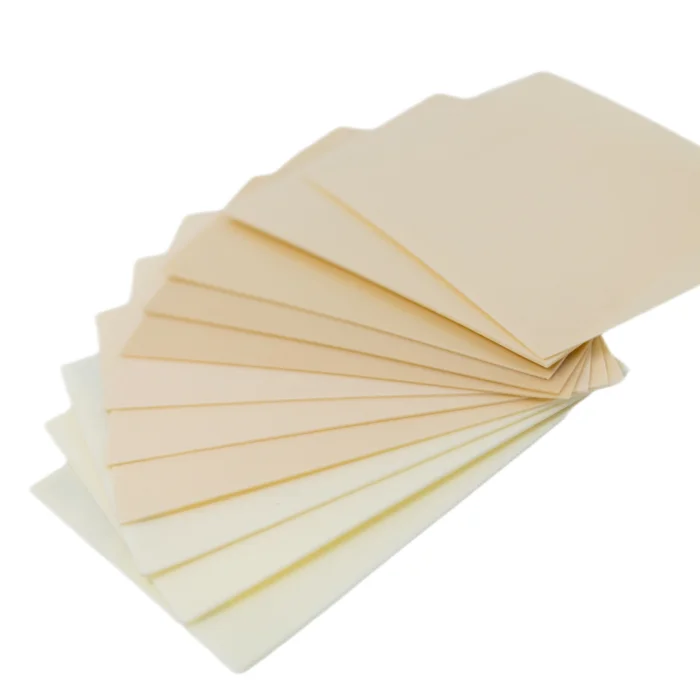

Polyolefin Foam – IXPP FOAM MSP05


IXPP foam is a type of polyolefin foam, which is also called polypropylene foam. It is cross linked by electron beam radiation.
Physical Property Table (TDS):
Product | Irradiation crosslinked polypropylene foam | |||
Times | 5B | |||
PHYSICAL PROPERTIES | TEST METHOD | METRIC UNITS | ||
Density - Nominal | ISO 845:2006 GB/T 6343-2009 | kg/m³ | 200±30 | |
Size limit | Thickness | Internal | mm | 1~3 |
Width | ≤1000 | |||
Tensile Strength | TD | ISO 1798:2008 GB/T 6344-2008 | MPa | ≥3.00 |
MD | ≥4.00 | |||
Elongation at Break | TD | ISO 1798:2008 GB/T 6344-2008 | % | ≥300 |
MD | ≥350 | |||
Tear strength | TD | QB/T 1130-91 | KN/m | ≥15.0 |
MD | ≥20.0 | |||
Dimension Stability (80℃,24h) | TD | ISO 2796:1986 GB/T 8811-2008 | % | ≤±2.0 |
MD | ≤±3.0 | |||
Water Absorption | under 50% RH condition | ISO 62:2008 GB/T 1034-2008 | % | ≤0.2 |
Application Scenarios and Performance Requirements:
A. New Energy Vehicle Battery Systems (e.g., power battery thermal insulation pads, cell diaphragms)
Performance Indicators: High-temperature resistance, flame retardancy
Performance Indicators: Fatigue resistance, environmental friendliness
Performance Indicator: Antimicrobial property
Performance Indicators: Shock resistance, water resistance
