Polyolefin Foam – IXPP FOAM MSP - SOFT

Our Solution

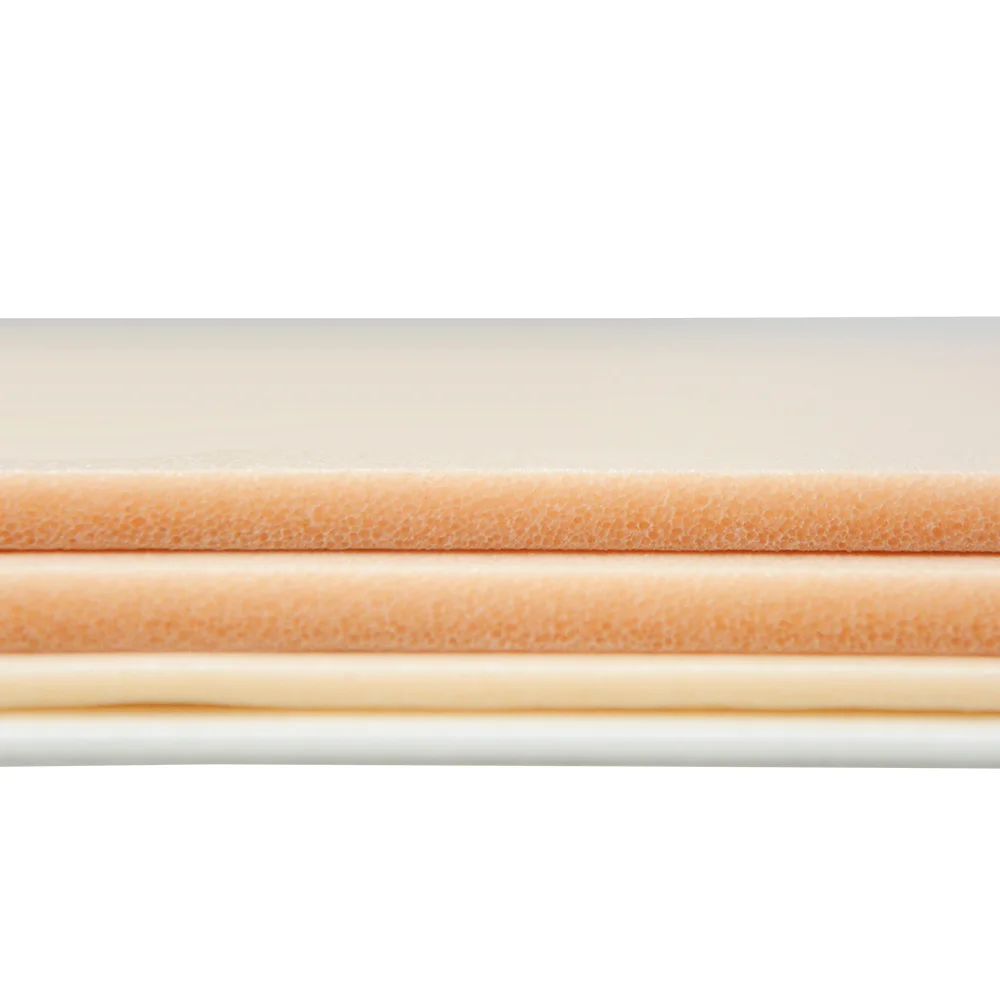

IXPP FOAM MSP-SOFT-1
IXPP FOAM MSP15-1
Polypropylene foam is a type of polyolefin foam, which is also called ixpp foam. It is cross linked by electron beam radiation. MSP-SOFT is designed for special use where softness is requested.

Physical Property Table (TDS):

Product Irradiation crosslinked polypropylene foam
Times 30B
PHYSICAL PROPERTIES TEST METHOD METRIC UNITS
Density - Nominal ISO 845：2006 GB/T 6343-2009 kg/m³ 33±5
Size limit Thickness Internal mm 2～10
Width ≤1700
Tensile Strength TD ISO 1798：2008 GB/T 6344-2008 MPa ≥0.40
MD ≥0.60
Elongation at Break TD ISO 1798：2008 GB/T 6344-2008 % ≥150
MD ≥200
Tear strength TD QB/T 1130-91 KN/m ≥3.0
MD ≥4.0
Dimension Stability (80℃,24h) TD ISO 2796：1986 GB/T 8811-2008 % ≤±3.0
MD ≤±5.0
Water Absorption under 50% RH condition ISO 62：2008 GB/T 1034-2008 % ≤0.3

Application Scenarios and Performance Requirements:

A. New Energy Vehicle Battery Systems (e.g., power battery thermal insulation pads, cell diaphragms)

Performance Indicators: High-temperature resistance, flame retardancy, low thermal conductivity

B. Automotive Interiors (e.g., roof linings, air ducts, dashboards, door armrests)

Performance Indicators: Fatigue resistance, environmental friendliness

C. Medical Applications (e.g., sterile medical device trays, medical dressings)

Performance Indicator: Antimicrobial property

D. Packaging (e.g., inner linings for tea cans, fruit packaging, boxes and instrument linings)

Performance Indicators: Shock resistance, water resistance

E. Construction (e.g., floating floor soundproofing and shock-absorbing pads)

Performance Indicators: Weather resistance, sound absorption, compression resistance, etc.
