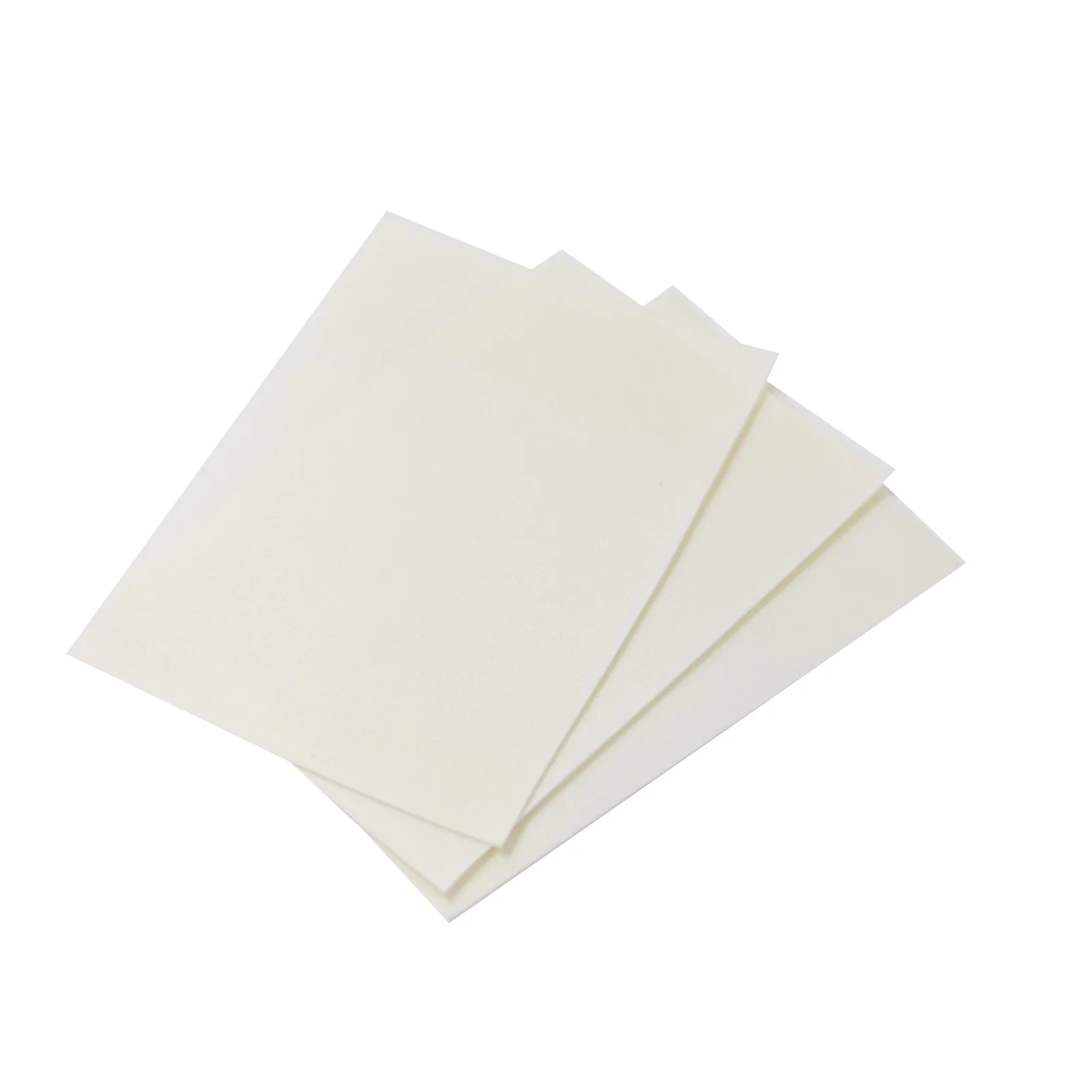

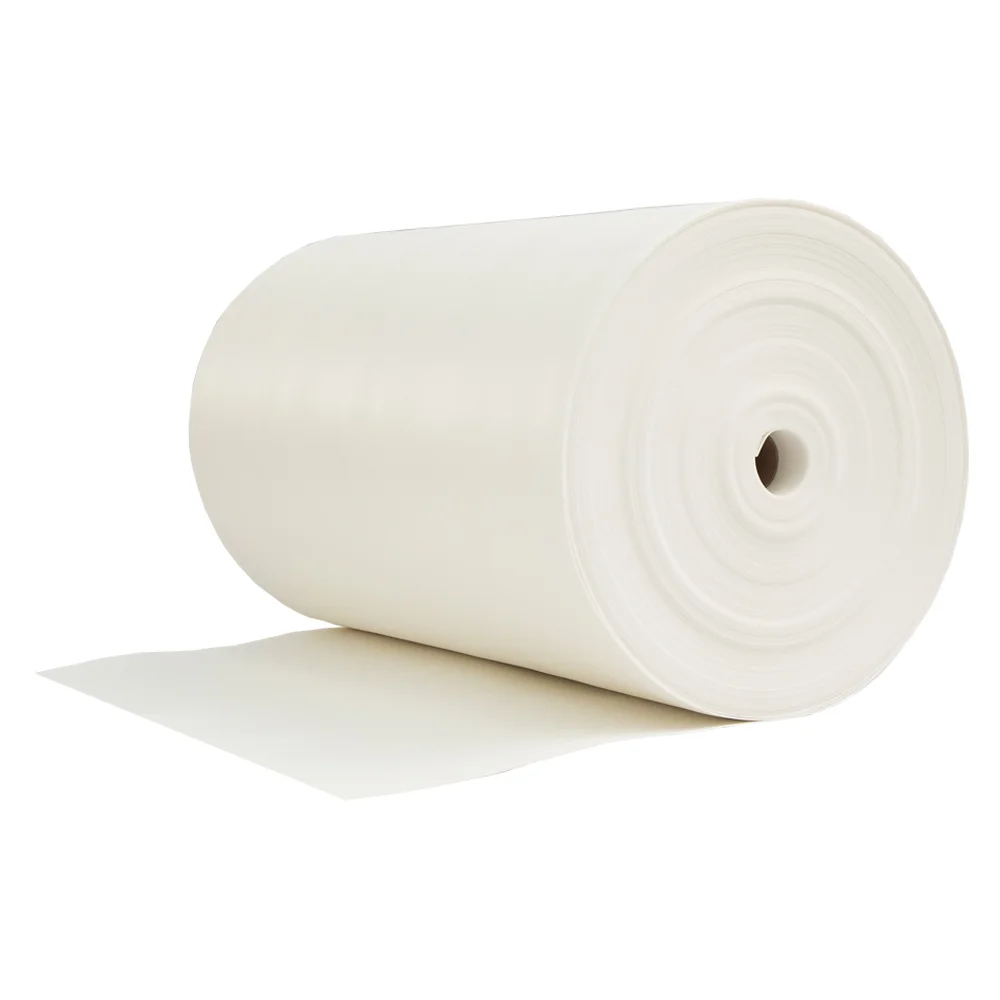

Polyolefin Foam – IXPE FOAM MSI30




IXPE foam is cross linked by irradiation. The polyethylene resin is heated and foamed to 5 to 30 times to form a completed independent-cell-structure foam. Almost 100% of the independent cells are closed cell and during foaming process, the air went into the cell so that the foam material expanded both in width and thickness.
Physical Property Table (TDS):
Product | Irradiation crosslinked polypropylene foam | |||
Times | 30B | |||
PHYSICAL PROPERTIES | TEST METHOD | METRIC UNITS | ||
Density - Nominal | ISO 845:2006 GB/T 6343-2009 | kg/m³ | 33±5 | |
Size limit | Thickness | Internal | mm | 2~3 |
Width | ≤1800 | |||
Tensile Strength | TD | ISO 1798:2008 GB/T 6344-2008 | MPa | ≥0.20 |
MD | ≥0.30 | |||
Elongation at Break | TD | ISO 1798:2008 GB/T 6344-2008 | % | ≥100 |
MD | ≥100 | |||
Tear strength | TD | QB/T 1130-91 | KN/m | ≥1.0 |
MD | ≥1.2 | |||
Dimension Stability (80℃,24h) | TD | ISO 2796:1986 GB/T 8811-2008 | % | ≤±4.0 |
MD | ≤±6.0 | |||
Water Absorption | under 50% RH condition | ISO 62:2008 GB/T 1034-2008 | % | ≤0.3 |
Application Scenarios and Performance Requirements:
Performance Indicators: High-temperature resistance, flame retardancy
Performance Indicators: Compression resistance, antistatic properties, temperature resistance
Performance Indicators: Water resistance, anti-aging
Performance Indicators: Antimicrobial properties, water resistance
