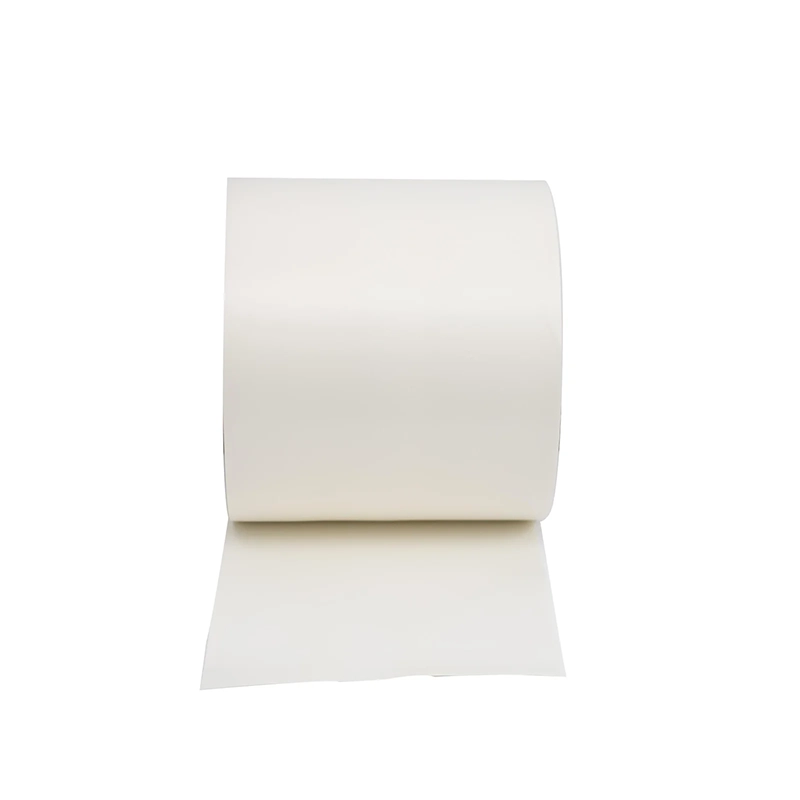

Polyolefin Foam – IXPE FOAM MSI15
“I” refers to irradiated “X” refers to cross linking “PE” refers to polyethylene resin So IXPE foam means irradiated cross linked polyethylene foam
Physical Property Table (TDS):
| Product | Irradiation crosslinked polypropylene foam | |||
| Times | 15B | |||
| PHYSICAL PROPERTIES | TEST METHOD | METRIC UNITS | ||
| Density - Nominal | ISO 845：2006 GB/T 6343-2009 | kg/m³ | 66±8 | |
| Size limit | Thickness | Internal | mm | 1～3 |
| Width | ≤1700 | |||
| Tensile Strength | TD | ISO 1798：2008 GB/T 6344-2008 | MPa | ≥0.50 |
| MD | ≥0.60 | |||
| Elongation at Break | TD | ISO 1798：2008 GB/T 6344-2008 | % | ≥120 |
| MD | ≥130 | |||
| Tear strength | TD | QB/T 1130-91 | KN/m | ≥2.5 |
| MD | ≥3.0 | |||
| Dimension Stability (80℃,24h) | TD | ISO 2796：1986 GB/T 8811-2008 | % | ≤±2.0 |
| MD | ≤±3.5 | |||
| Water Absorption | under 50% RH condition | ISO 62：2008 GB/T 1034-2008 | % | ≤0.2 |
Application Scenarios and Performance Requirements:
Performance Indicators: High-temperature resistance, flame retardancy
Performance Indicators: Compression resistance, antistatic property, temperature resistance
Performance Indicators: Water resistance, anti-aging
